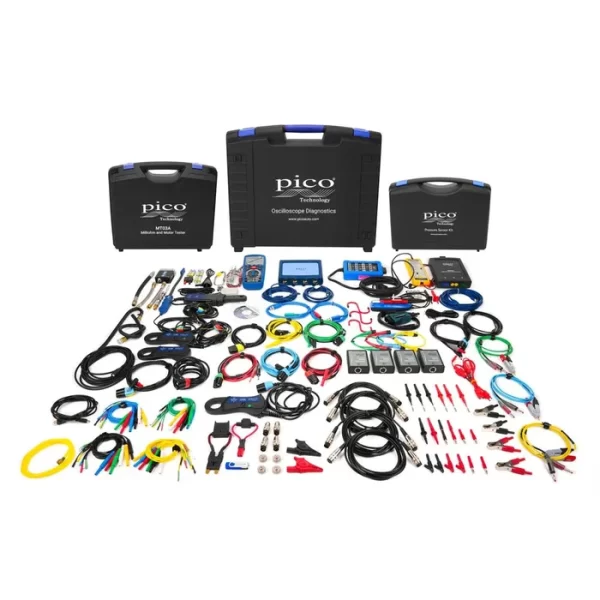

Elite Edition of the Four Way Teaching Kit (EP116)
The Acer Pico Automotive Oscilloscope is a PC-based device that is especially suitable for teaching, lesson preparation, and interaction with teachers and students in large classrooms.
Teachers show waveform data to help students understand the working principle of a car.
描述
functionality
相對於標準版套裝，該套裝增加了NVH檢測設備、WPS500X壓力感測器、毫歐與電極測試儀，以及更多的附件、適配器、引線等，實現更全面的診斷教學。
Set List
| Serial Number | Name | quantity | Serial Number | Name | quantity |
|---|---|---|---|---|---|
| 1 | PicoScope 4425A 四通道示波器模組 | 1 | 35 | 6-Way Universal Lead Wire (Yellow, Small, 1.5mm) | 1 |
| 2 | USB 3.0 測試線 | 1 | 36 | 6-Way Universal Lead Wire (Blue, Medium, 2.3mm) | 1 |
| 3 | PicoBNC+ Test Lead, 3m, Blue | 1 | 37 | 6-Way Universal Lead Wire (Black, Medium, 2.8mm) | 1 |
| 4 | PicoBNC+ Test Lead, 3m, Red | 1 | 38 | 6-Way Universal Lead Wire (Green, Micro, 0.6mm) | 1 |
| 5 | PicoBNC+ Test Lead, 3m, Green | 1 | 39 | CAN Test Box | 1 |
| 6 | PicoBNC+ Test Lead, 3m, Yellow | 1 | 40 | 3通道NVH介面盒 | 4 |
| 7 | ATC式保險絲延長線 | 1 | 41 | MEMS 加速度計 | 4 |
| 8 | mini ATC保險絲延長線 | 1 | 42 | 麥克風 | 4 |
| 9 | Jcase保險絲延長線 | 1 | 43 | NVH 感測器延長線 | 4 |
| 10 | Maxi 保險絲延長線 | 1 | 44 | BNC至BNC線纜， 0.5m 藍 | 1 |
| 11 | 倒車雷達探頭 | 1 | 45 | BNC至BNC線纜， 0.5m 紅 | 1 |
| 12 | 無鑰匙進入系統探頭 | 1 | 46 | BNC至BNC線纜， 0.5m 綠 | 1 |
| 13 | PicoBNC+電流鉗：2000A | 3 | 47 | BNC至BNC線纜， 0.5m 黃 | 1 |
| 14 | PicoBNC+大量程線性溫度探頭 | 1 | 48 | 加速度計的磁座 | 4 |
| 15 | PicoBNC+COP Ignition Probe | 1 | 49 | J2534診斷線:Mongoose-Plus ISO/CAN3 | 1 |
| 16 | PicoBNC+ 60A Current Clamps | 1 | 50 | Milliohm and Motor Testers | 1 |
| 17 | Multimeter Probe (Black) | 1 | 51 | WPS500壓力感測器主機 | 1 |
| 18 | Multimeter Probe (Red) | 1 | 52 | 燃油測試管（大接頭） | 1 |
| 19 | Small Alligator Clip (Black) | 2 | 53 | 燃油測試管（小接頭） | 1 |
| 20 | Small Alligator Clip (Red) | 2 | 54 | 真空管 | 1 |
| 21 | 大鱷魚夾（黑色） | 1 | 55 | 放油管 | 1 |
| 22 | 大鱷魚夾（紅色） | 1 | 56 | 尾氣管 | 1 |
| 23 | 4mm Sheath to Unsleeved Adapter | 4 | 57 | 標準壓縮管 | 1 |
| 24 | Battery Clip (Red) | 2 | 58 | M10火花塞短接頭 | 1 |
| 25 | Battery Clip (Black) | 2 | 59 | M12火花塞長接頭 | 1 |
| 26 | PicoBNC+汽車10:1示波器探頭 | 2 | 60 | M14火花塞短接頭 | 1 |
| 27 | 25MHz 1400V差分探頭 | 1 | 61 | M14火花塞長接頭 | 1 |
| 28 | PicoBNC+ Resistance Test Leads | 1 | 62 | Foster 2系列快速接頭 | 1 |
| 29 | 1000V背刺探針 (黑色) | 3 | 63 | 通用真空管適配器 | 1 |
| 30 | 1000V背刺探針 (紅色) | 3 | 64 | USB充電線纜 | 1 |
| 31 | Pico 兩極電壓測試儀 | 1 | 65 | BNC至BNC線纜 | 1 |
| 32 | Pico 兩極電壓測試儀 | 1 | 66 | Specialized Software + Manuals | 1 |
| 33 | USB 2.0 測試線，4.5米 | 1 | 67 | 耐用大工具箱 | 1 |
| 34 | S-hook | 2 | |||
