I. Preface
During the outbreak, when cities were closed and multinational engineering teams were forced to be separated from each other, data center setups and OCP server installations came to a near standstill. However, Nexedi's project team successfully completed the remote deployment of a standard set of 19-inch OCP servers and switches under the most challenging conditions. The key: the technicians at the site woreHonghong AR Expert SystemThe French, Polish and Chinese engineers were able to break through the time difference and lockdown constraints. Through first-perspective image transmission, real-time marking, voice operation and synchronized collaboration with experts from different countries, French, Polish and Chinese engineers were able to break through the time difference and blocking restrictions to complete the whole process from rack installation, power configuration to system start-up.
This successful remote installation demonstrates the real value of AR technology in high-risk, high-precision engineering fields.Even if the engineers are thousands of miles apart, they can work as if they were standing in front of the same cabinet!

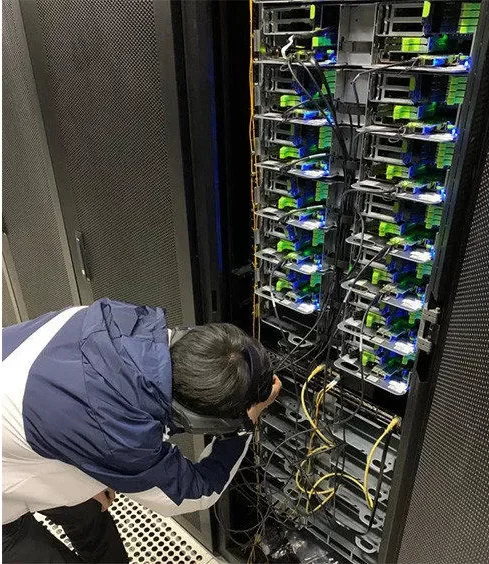

First 19” OCP open rack installation at China Telecom Data Center.
Nexedi purchased two sets for its new Rapid Space site in Xinzhou, Shanxi, China. 19" Rack ESA Kit with OCP Tioga Pass L10 Server。The hardware is manufactured and supplied by Mitac in Taiwan and is paired with an Edgecore AS5812 switch to enable all OCP servers to connect over 10Gbps LAN and 1Gbps Internet Transit. The deviceto be delivered to the China Telecom Data Center in late 2019.But the installation program was shut down due to the outbreak.……
Second, the epidemic sealed off the city: all engineering staff were stranded, and installation came to a complete standstill
January 2020 Covid-19 Since Wuhan's rapid proliferation, cities across China have been closed and cross-province traffic halted.Nexedi's China-based engineers were stranded in Anhui province, unable to travel to the data center, while the rest of the team with OCP installation capabilities were abroad.
The only people with access to the data center are the local Rapid Space partners.But they have no experience in server assembly or deployment。With no way to move across provinces and international flights grounded, the installation has come to a complete standstill.
Honghong AR Specialized System: Help cross-border technicians to realize "zero distance" remote installation.
In March, Edgecore willHonghong AR Expert SystemIntroduced to Nexedi as the best solution to help engineers remotely instruct field technicians.
The Hong Kong AR Specialist System includes:
Industrial/Medical AR Smart Glasses M400
Bi-directional video and audio streaming
First View Remote Instruction
Screen Freeze, Marker, Alert Function
Multi-language real-time audio/subtitle conversion
Laptop/tablet/mobile access to the platform by experts
Overseas engineers can get access to theFirst view of the sceneThe installation can be completed by local personnel with immediate remote instructions.
The actual operation process is included:
Freeze-frame through AR glasses to mark screw locations and assembly orientation
Provide voice guidance to on-site technicians for installation of BUS Bar, side panels, racks, power racks, etc.
Remote engineers are synchronized to view details and correct steps.
Field personnel can operate the device with both hands, no need for hand-held devices
The system supports voice control and screen switching to facilitate the assembly process.
In a short period of time, the on-site team without prior experienceSuccessful completion of assembly of all OCP equipment。
Steps for server installation (done through AR First View Collaboration)
- Installation and securing of data center cabinet rails
- Installation of BUS Bar, Left and Right Side Panels and Support Brackets
- Installation of the power rack and adjustment of the contact position
- Assemble the switch according to the Edgecore manual.
- Rack the servers one by one, connect them to the power supply, and connect them to the switch.
- Full AR remote expert synchronization to confirm installation correctness
Software Installation and IPv6 Remote Operation
For the smooth operation of AS5812, the site is also conducted through the AR system:
AOS (ACCTON Switch OS) Installation
Debian 10 Pre-Installation and VM Settings
Re6st (IPv6 overlay network) installation
With a Raspberry Pi as a remote maintenance bridge on site, Nexedi engineers are able to log in to the server and configure it simultaneously in France, Poland and China.
The key to success: AR + complete technical guide, so that zero experience personnel can also complete the high complexity of the installation
The ultimate success of the project was attributed to four major factors:
1. a full set of remote operation teaching and program documents can be viewed at any time
Field crews can assemble while watching AR instructions, regardless of their skill set.
2. Honghong AR Specialized System provides real-time remote first-look collaboration.
Overseas experts are on hand to give precise instructions every step of the way.
3. AR goggles free up your hands to improve assembly efficiency and accuracy.
No handheld device is required and the installation process is continuous and uninterrupted.
4. Re6st and IPv6 allow all servers to be remotely accessed and tested.
Improve maintenance speed and deployment efficiency.
Conclusion: Knowledge Across Distances: Organizational Resilience and Efficiency Enhancement with AR
This cross-country remote installation of OCP servers successfully overcame the logistics and manpower disruption brought about by the epidemic, and demonstrated that the OCP servers can be used in a wide range of applications.The True Value of AR Technology in the Highly Specialized Engineering ArenaThrough Honghong's AR Expert System, field technicians can share their work images from the first viewpoint. Through Honghong's AR expert system, on-site technicians are able to share the operation screen from the first viewpoint, and remote experts are able to annotate, instruct, and synchronize each key step, transforming the work that would otherwise have to rely on overseas engineers to visit the site into a cross-country, zero-time-difference, high-efficiency process.
In the post-epidemic era, the challenge for enterprises is no longer just "how to reduce costs" or "how to shorten maintenance time", but also "how to minimize the time required for maintenance", but also "how to minimize the time required for maintenance".How to make technical knowledge flow quickly, reliably, and reach where it's needed in real-timeAR Remote Collaboration is a symbol of this core capability. AR remote collaboration is the symbol of this core capability. In the future, AR will become an indispensable standard tool for data center deployment, factory equipment maintenance, medical support, and even multinational project management, and will continue to promote the upgrading of industrial efficiency and resilience.
