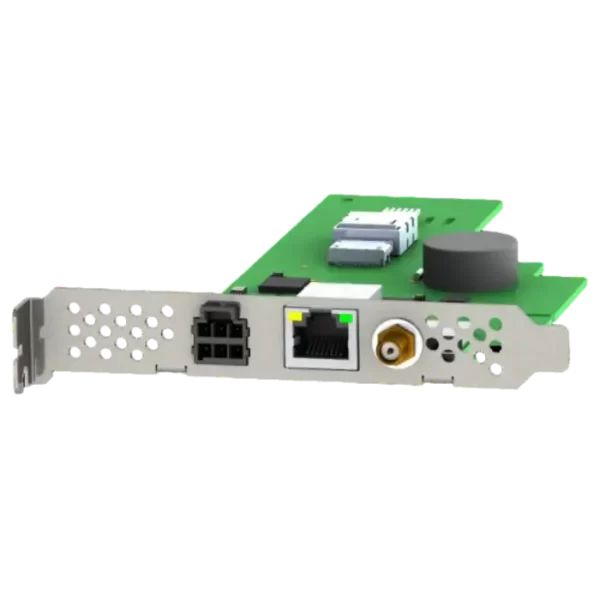

PSB Precision Synchronization Box - High Precision Time Synchronization and High Speed Multi-Interface Transmission Solution
Functional overview
PSB 精準同步盒是專為資料中心和工業自動化設計的高精度時間同步設備，支援多介面高速傳輸及靈活的同步選項。其核心功能包括四個10GBASE-T介面、IEEE 1588v2及802.1AS-2020協定的支援，確保網路設備之間的時間同步精度，最高可達100納秒，並提供高效的資料傳輸和多時間域同步選項，適用於各大作業系統。
Description
- Highly accurate time synchronization: Supports IEEE1588v2 (PTP) and 802.1AS-2020 (gPTP) time synchronization protocols with up to 100 ns accuracy.
- Compatible with various operating systems: 4 10GBASE-T interfaces enable seamless integration with different system environments.
- Efficient Synchronization of Time Sources: Synchronize with up to 4 QX550 boards and support 16 interfaces.
| PC interface | OCuLink x4 電纜至QX550主站 |
|---|---|
| Ethernet interface | 1x 1000BASE-T 主/從 |
| GPS訊號源 | U-blox Neo-M8 GPS 模組 |
| 外部時間訊號源 | RS-232 / NMEA / PPS 輸入 |
| PPS allocation | 1x 外部（PPS 輸出） |
| power wastage | 5 W |
| Cooling Method | 被動式 |
| sizes | 120.74mm (W) x172.29mm (D) x21.59mm (H) |
| weights | 淨重 80 g |
| Working Temperature | -10 °C ~ +60 °C |
| Storage Temperature | -45 °C ~ +85 °C |
| Relative Air Humidity | 90% Non-condensing at operating temperature |
| Certificates | CE, RoHS, REACH |
- Cluster Time Synchronization (CTSS): Timing via IEEE 1588v2 (PTP) or IEEE 802.1AS-2020 (gPTP).
- Platform Time Synchronization (PTSS): A hardware mechanism synchronizes the clocks of all Ethernet interfaces to ensure that all Ethernet networks have the same crystal time.
- High-precision Hardware Crystal Time Synchronization: Multi-phase machine acquisition can be as low as 100ns error, supports multiple time domains and stable time base.
- Automatic correction of TAI time “seconds” error to ensure the accuracy of time synchronization.
- Data Center: Ensure high-precision time synchronization and optimize network performance.
- Industrial Automation: Enhance the efficiency of inter-system collaboration and realize precise control.
- Smart City: Supports large-scale device synchronization to ensure data consistency.
- Financial Services: Enables accurate time recording of transactions and compliance with regulatory requirements.
- Scientific research: for high-precision experiments and data synchronization needs.
