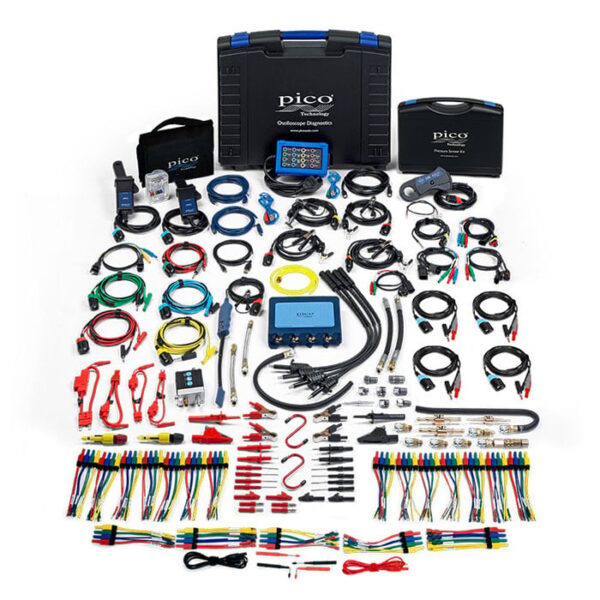

Pico4425A Quad Channel Master Kit (EP035)

Description

Kit Includes.

• 1 PicoScope 4425A Oscilloscope Module
• 1 ATC type fuse extension (HKTA034)
• 1 mini ATC fuse extension (HKTA035)
• 4根COP高壓點火延長線（HKTA037）
• 1 earth wire for COP coil set (HKTA106)
• 1個CAN測試盒（HKTA069）
• 1 Jcase Fuse Extension (HKTA168)
• 1 Maxi Fuse Extension (HKTA206)
• 1套6路通用引線（HKTA514）
• 1 x Reverse Radar Probe (HKTA329)
• 1個無鑰匙進入系統探頭（HKTA330）
• 1 PicoBNC+ Current Clamp: 200A/2000A (HKTA388)
• 1 x PicoBNC+ Large Range Linear Temperature Probe (HKTA395)
• 1 PicoBNC+COP Ignition Probe (HKTA398)
• 1根PicoBNC+電阻測試線（HKTA432）
• 2個PicoBNC+ 60A電流鉗（HKTA473）
• 1套WPS500X壓力感測器高級套裝（EP077）
• 1 PicoBNC+ to 4mm test lead (blue) (HKTA404)
• 1 PicoBNC+ to 4mm test lead (red) (HKTA405)
• 1 PicoBNC+ to 4mm test lead (green) (HKTA406)
• 1 PicoBNC+ to 4mm test lead (yellow) (HKTA407)
• 2 Multimeter Probes (Black) (HKTA001)
• 2 Multimeter Probes (Red) (HKTA002)
• 2 Small Anchovy Clips (Black) (HKTA003)
• 2 Small Anchovy Clips (Red) (HKTA004)
• 1 Large Anchovy Clip (Black) (HKTA005)
• 1 Large Anchovy Clip (Red) (HKTA006)
• 1套刺綫鈎（1紅1黑）（HKTA007）
• 1 Box of Needles (HKTA008)
• 1根2針脚引線（HKTA012）
• 4 x 4mm Sheath to Unsleeved Adapter (HKTA017)
• 1個彈簧鈎（黑色）（HKTA089）
• 1個彈簧鈎（紅色）（HKTA090）
• 2 Battery Clips (Red) (HKTA157)
• 2 Battery Clips (Black) (HKTA158)
• 4 Flexible Felting Needles (Black) (HKTA161)
• 4 Flexible Felting Needles (Red) (HKTA162)
• 1 ACS 2-pin lead (HKTA190)
• 1根Kostal 3針脚引線（HKTA191）
• 1根ACS 3針脚引線（HKTA267）
• 4 PicoBNC+ Secondary Ignition Pickup Wire (HKTA397)
• 4根PicoBNC+汽車10:1示波器探頭（HKTA506）
• 1根USB 3.0綫（HKTA155）
• 1根USB 2.0 測試線，4.5米（MI121）
• 2 S-hooks
• 1 USB flash drive (software & data)



---

Tested Items Covered.

Compression Test	Gas pedal sensor	Amplifier grounding	Flex Ray
Vehicle Balancing	Speed Sensor	Amplifier Signal	KWP2000
Battery Generator Testing	Solenoid Valve	Primary ignition system	Cam VS Crankshaft Position Sensor
Generator	Throttle Sensor	DIS Ignition Voltage VS Current	Primary Ignition VS Crankshaft Sensor
Starter Voltage/Current	Burst Sensor...	Primary vs.	Primary Ignition VS Fuel Injector
Relative Compression	Cooling Fan	DIS Initial Voltage	Cams, Crankshafts, Injectors and Ignition
Smart Generator	fuel pump	DIS Initial Current	HVAC efficiency (temperature)
ABS	Stepping Motor	Primary Ignition vs.	進氣壓力
Camshaft Sensors	Throttle servo motor	Swing Test (Impedance)	汽缸壓縮
Temperature Sensor	Pressure regulator	SAW Signal	Crankcase Pressure
Crankshaft Sensor	Camshaft Adjuster	Secondary High Pressure	排氣脉衝
Electric distributor pickup	EGR	COP independent ignition system	共軌柴油噴油嘴回油測試
Fuel Pressure Sensor	Preheat Plugs	Multi-COP Independent Ignition System	渦輪增壓器性能（汽油）
Oxygen Sensor	Fuel Injector	CAN Bus	燃油壓力-負壓（柴油）
MAF Sensor	Speed Control Valve	LIN
MAP Sensor	Timing Valve	K-Line
