BeyonSense 1 - the world's first smartphone compatible shortwave infrared camera
Function Overview:
BeyonSense 1 is the world's first smartphone-compatible perylene-based shortwave infrared (IR) camera that supports a wide spectral range of 400-1700nm. With its portable and compact design and light weight, it features high performance, low power consumption, and low cost. It can be quickly connected to a cell phone or computer via Wi-Fi or Bluetooth without cumbersome installation, making it suitable for a wide range of applications such as industrial and scientific research, and meeting different imaging needs.
Description
Hong Kong BeyonSense 1 Mini Shortwave Infrared Camera
The World's First Wireless Smartphone-Compatible Perylene-based Shortwave Infrared Camera High-Resolution Version
With the same 400-1700nm spectral response, it is 5 times lighter, 10 times more energy-efficient, and 10 times cheaper than a typical GaAs short-wave infrared camera!
Realized in a compact size of 28 mm, it is portable and compact, and can be operated via Bluetooth or WiFi connection to cell phones and computers.
In addition, we also offer InGaAs short-wave infrared (IR) chillers, which meet a wide range of needs for higher resolution, high quantum efficiency, and high sensitivity.

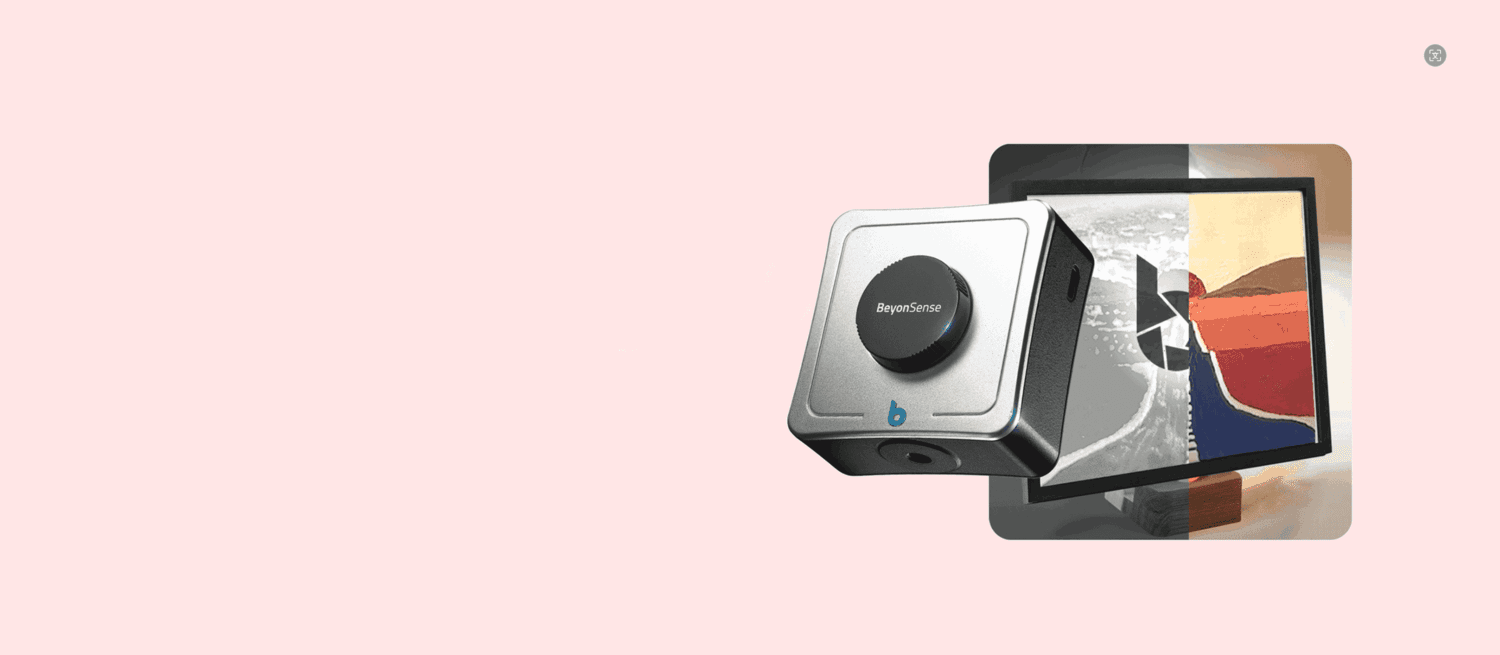

BEYONSENSE 1 Short Wave Infrared Camera
The camera utilizes an advanced perylene-based sensor that uses selective epitaxial growth and sacrificial filler layers to form perylene islands, and thermal oxidation of perylene to reduce surface roughness, dramatically lowering the manufacturing cost of short-wave infrared detectors. It realizes the ultra-thin design of only 28mm, supports wireless hotspot emission, and connects to a cell phone or computer via Bluetooth or WiFi for operation and imaging control.
Key Features:
- Compact and lightweight: 5 times lighter than a typical SWIR camera, 10 times less power consumption and 20 times lower cost.
- Multi-Platform ConnectivityWiFi Hotspot: Built-in WiFi Hotspot supports Windows, Android, and iOS systems, and operates via Bluetooth or WiFi direct connection.
- Broad Spectrum Imaging420-1650 nm broad spectrum imaging to meet diverse testing needs.
- efficient and convenientThe 5V/1A-USB power supply, standard C-port lens, and 800-700nm pass filter (visible light cutoff) are suitable for short-wave infrared photography and industrial inspection scenes.
Product Advantages
Emerging Molniya Sensors
Slim 28mm size
Camera control CC line can be used for triggering options
10 times less power consumption than regular SWIR cameras
Superior price/performance ratio
Very easy to operate
Bluetooth/Wifi connection for cell phone/PC operation
400-1700nm broad spectrum
The world's first smartphone-compatible shortwave infrared camera that's ultra-portable
Most of the infrared cameras in the market are based on “InGaAs” (Indium Gallium Arsenide), which is expensive, bulky and limited in application. BEYONSENSE 1 adopts the emerging perylene-based sensor, which is inexpensive, portable, and multi-functional than the usual SWIR cameras:
Five times lighter.
Saves 10 times more power
20 times cheaper.
28 mm / 1.1 inches
66 mm / 2.59 inches
66 mm / 2.59 inches
Product Composition
Standard Kit Base Accessories
New accessories for scientific imaging
C-Mount Lens
1/4-20 Tripod
USB Micro B Power Cord
brackets
Incandescent, halogen or short-wave infrared LEDs
Charging Head
With lens, tripod and power cord
Basic Camera Usage Configuration
Suitable for inspection light source/existing light source applications
Add multiple light source options
Complete camera usage configuration
Suitable for short-wave infrared imaging applications
Accessories
Window
Android (operating system)
apple
Unlock countless new application possibilities
Honghong Beyonsense 1 adopts perylene-based material as the detector, which can detect signals in the range of 400-1600nm with a detector resolution of 128×128. The short-wave infrared technology brings you a brand-new future.
SWIR Laser Detection and Laser Observation
Anti-forgery certificate
High Spectrum Imaging
Drone Infrared Imaging
Semiconductor Wafer Inspection
Solar Panel Inspection
Solar Panel Inspection
Laboratory Research Applications
Shortwave Infrared Camera Multi-Environmental Imaging
BeyonSense 1 can be used in a wide range of scenarios, including spot imaging with multiple light sources, outdoor environmental imaging and indoor object imaging.
With simple or advanced calibration, the camera is capable of realizing quality imaging results in different environments. For different needs, you can choose different shooting modes and light source accessories to obtain more accurate imaging results.
Detailed Data
| Camera Parameters | Imaging Sensor Parameters | Lens parameters |
|---|---|---|
| Maximum frame rate | 10 fps | Focal length: 16 mm |
| Power Consumption (Standby) | 600 mW (typical) | Maximum aperture ratio: 1 : 1.4 |
| Power consumption (operating) | 900 (typical) | Adjustment range (aperture): F1.4 - F16C |
| Connections | Wi-Fi | Working range (focal length): 0.3m - unlimited distance |
| Module Size | 60mm x 60mm | Controls: Manual dimming distance, focal length |
| power supply | USB (5-pin) | Telescopic H thread: M30,6 , P=0.5mm |
| Input Connector | C-mount | Lens size: 33.5mm x 28.2mm |
| sizes | -5°C - 45°C | Lens connector: C-mount |
Frequently Asked Questions
Technical support and paid services to drive your project to the limit.
Honghong (brand) Beyonsense rangeIt's the latest.Shortwave Infrared Camera based on CymbaliumIt is small and portable. It is compact and portable, very easy to operate, can be connected via hotspot wireless smartphone, computer direct imaging observation, suitable for a number of short-wave infrared test shooting experimental scenes, can also be used directly in industrial research online inspection. Compared with GaAs chips, it is cost-effective and economical.
This camera has a 128×128 pixel and 35um single pixel size, the chip target surface 6.8mm×6.8mm, the use of perylene-based sensor wavelength response range of 400-1700nm, the standard comes with a C-port lens, and is equipped with 800-1700nm pass filter (visible cutoff).
Because we use the latest cameras.Grit Sensors and ProcessesThe QE (Quantum Efficiency) test is different from other devices because of the difference in the structure of opto-electronic diode, the spectral range of 400-1700nm response imaging are examples, the specific QE data test effect, we need to verify the test several times with different test methods before we can provide detailed information.
- The data interface is wireless, the camera itself sends a WIFI hotspot, cell phones, computers and other devices connected to the hotspot will be able to wirelessly transmit the control signals and capture images.
- Power interface is USB-A to USB-microB, power supply only (5V1A), no data transfer.
- Android Apps: Images and videos taken with BeyonSense will be stored in the root/DCIM/BeyonSense folder.
- iOS Apps: Images and videos taken with BeyonSense can be found in the Photos app > Albums > BeyonSense Albums. > “Albums” > “BeyonSense Albums”.
- BeyonSense Viewer on Windows: By default, images and videos taken with BeyonSense are saved in the C:\Users\(username)\Pictures\BeyonSense folder/path. You can change the default save location in Settings.
Yes, the BeyonSense camera requires a WI-FI connection to a PC or smartphone to work.
Yes, the BeyonSense camera requires a WI-FI connection to a PC or smartphone to work.
At present, there are infrared light source lamp bead manufacturers using beyonsense short-wave infrared camera to do luminous detection, infrared laser laboratory testing, and there are also metrological institutes and other organizations in need of testing equipment to buy. There are also universities and colleges that want to do agricultural products and some primary infrared research.
We strongly recommend that you use the infrared lens provided with your BeyonSense. Using any other lens may damage BeyonSense and void any warranty on the device.
Simple calibration:
- A process used to eliminate the effects of gradual changes in the fundamental signal. This is the simplest method of calibration and is suitable for most situations.
Advanced Calibration:
- 可重置每個圖元的最小/最大值，以實現最佳拍攝效果。更改環境光環境時需要重新校準。
必須有一個紅外光源供物體吸收和/或反射以允許成像和對比度。最常見的來源紅外波長來自太陽或白熾燈。
為什麼我的手機無法連接BeyonSense？
檢查以下內容：
- 檢查您的 Wi-Fi 設置，確保您的智慧手機尚未連接到其他網路。
- 確保您的 BeyonSense 電量充足。
- 重試連接。
請注意：
- BeyonSense設備一次只能連接到一部智慧手機。
- 如果從一部智慧手機切換到另一部智慧手機，請在連接到新設備之前斷開 BeyonSense 與 Wi-Fi 的連接。
不可以。BeyonSense要求您連接到設備創建的Wi-Fi網路，這將導致您失去任何以前的互聯網連接。您可以斷開設備與 BeyonSense 的連接，以恢復使用互聯網服務。
Honghong will provide you with any support you need!
Our professional Honghong team will be the first to respond and provide you with the best service to solve all your problems.
