網關 Gateway

工業M2M網關

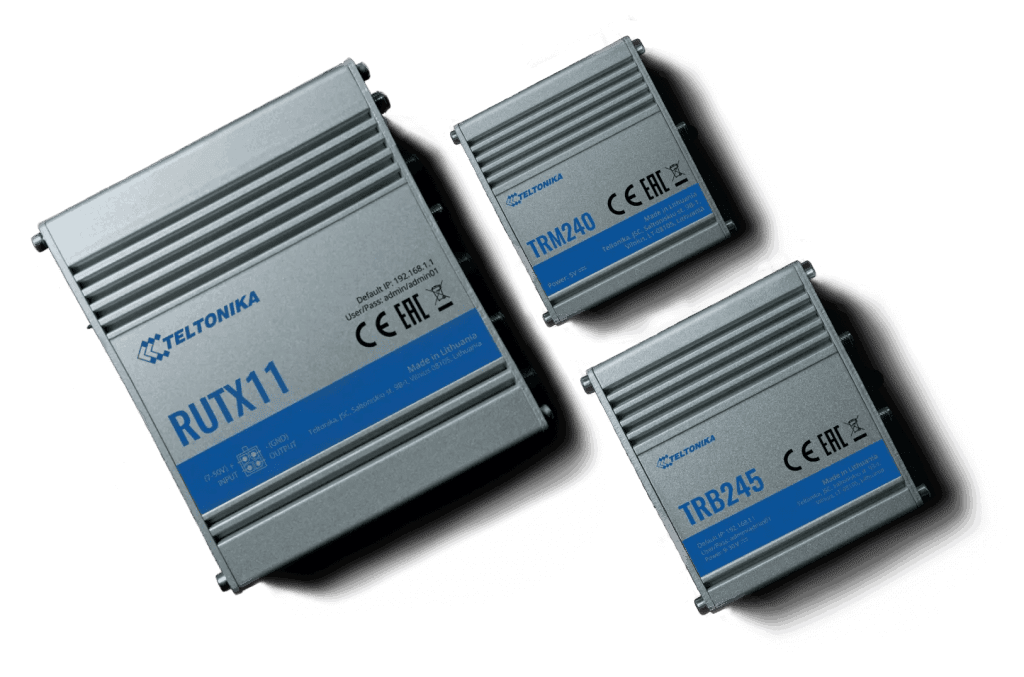

Teltonika Networks TRB 系列是一組可編程的 M2M 網關,旨在將一個設備連接到 Internet。基於 Linux 的高性能 TRB 設備具有工業網絡功能和各種接口,例如以太網、RS232、RS485 或輸入/輸出。我們所有的網關都支持 4G LTE,並且可以連接到 RMS(遠程管理系統),以實現直觀方便的遠程監控、配置和控制。

熱銷產品

TRB 255

連接性

4G/LTE (Cat M1), NB-IoT, 2G

雙 SIM 卡

具有自動故障轉移、備份廣域網等切換場景

CONNECTIVITY

RS232/RS485串行通訊接口

9-30V

廣泛的電源電壓支持範圍

輸入/輸出

用於遠程監控和控制的多個輸入和輸出

GPS

具有地理範圍定位服務的GPS系統

▼ 關鍵特性

◆ TRB255 可用於透過 RS232、RS485 和以太網接口將現代和傳統工業設備集成到一個解決方案中。

這款工業 LTE Cat M1 和 NB-IoT 網關向後相容 EGPRS (2G) 網路。它仍然可以與 2G 網路一起使用,但是如果它被關閉,則有可能切換到 LPWAN 連接選項。

TRB255 具有廣泛的工業和網路功能,例如 Modbus、SMS 控制、防火牆、OpenVPN 等。

◆ 本產品與 Teltonika Networks 遠程管理系統 (RMS) 相容。

選型指南

Ethernet1 x RJ45 port, 10/100/1000 Mbps
I/Os2 x Configurable I/O pins on 4 pin power connector (I/O not available in TRB140*2****)
USB1 x Virtual network interface via micro USB
Status LEDs3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED
SIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power1 x 4 pin DC connector
Anntena1 x SMA for LTE
ResetReboot/User default reset/Factory reset button
I/Os3 x Digital Inputs, 1 x Analog input, 2 x Relays on 16 pin connector, 2 x I/O pins on 4 pin power connector
1-Wire1 x 1-Wire interface on 16 pin connector
USB1 x Virtual network interface via micro USB
Status LEDs3 x connection type status LEDs, 5 x connection strength LEDs, 1 x Power LED
SIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power1 x 4 pin power connector
Anntena1 x SMA for LTE
ResetReboot/User default reset/Factory reset button
RS2321 x DB9 socket
I/Os2 x Configurable I/O pins on 4 pin power connector (I/O not available in TRB142*2****)
USB1 x Virtual network interface via micro USB
Status LEDs3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED
SIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power1 x 4 pin power connector
Anntena1 x SMA for LTE
ResetReboot/User default reset/Factory reset button
RS4851 x 6 pin terminal block for 2-wire or 4 wire interface
I/Os2 x Configurable I/O pins on 4 pin power connector (I/O not available in TRB145*2****)
USB1 x Virtual network interface via micro USB
Status LEDs3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED
SIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power4 pin power connector with 2 x configurable Digital Inputs/Outputs (I/O not available in TRB145*2****)
Anntena1 x SMA for LTE
ResetReboot/User default reset/Factory reset button
Ethernet1 x RJ45 port, 10/100 Mbps
I/O’s3 x Configurable I/O, 1 x Analog input in 16 pin terminal block
Status LEDs3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED
SIM2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray
Power2 pins in 16 pin terminal block
Antennas1 x SMA connector for LTE, 1 x SMA connector for GNSS
RS2324 pins in 16 pin terminal block (TX, RX, RTS, CTS)
RS4854 pins in 16 pin terminal block (D+, D-, R+, R-)
ResetReboot/User default reset/Factory reset button
Ethernet1 x RJ45 port, 10/100 Mbps
I/O’s3 x Configurable I/O, 1 x Analog input in 16 pin terminal block
Status LEDs3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED
SIM2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray
Power2 pins in 16 pin terminal block
Antennas1 x SMA connector for Mobile, 1 x SMA connector for GNSS
RS2324 pins in 16 pin terminal block (TX, RX, RTS, CTS)
RS4854 pins in 16 pin terminal block (D+, D-, R+, R-)
ResetReboot/User default reset/Factory reset button
